iDEAL IWA-60-8500-HD-K 3d HD Truck Multi-Axle Image Wheel Aligner System
- Free Shipping
- Certified Car Lifts
- 30-Day Hassle-Free Returns
- In stock, ready to ship
Product Description
iDEAL IWA-60-8500-HD-K 3d HD Truck Multi-Axle Image Wheel Aligner System
Product Features
- MULTI-AXLE FLOOR ALIGNMENT SYSTEM – NO VEHICLE LIFT REQUIRED!

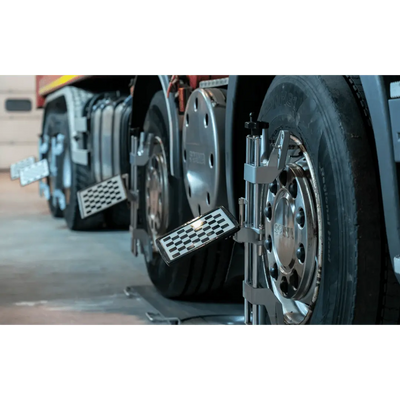

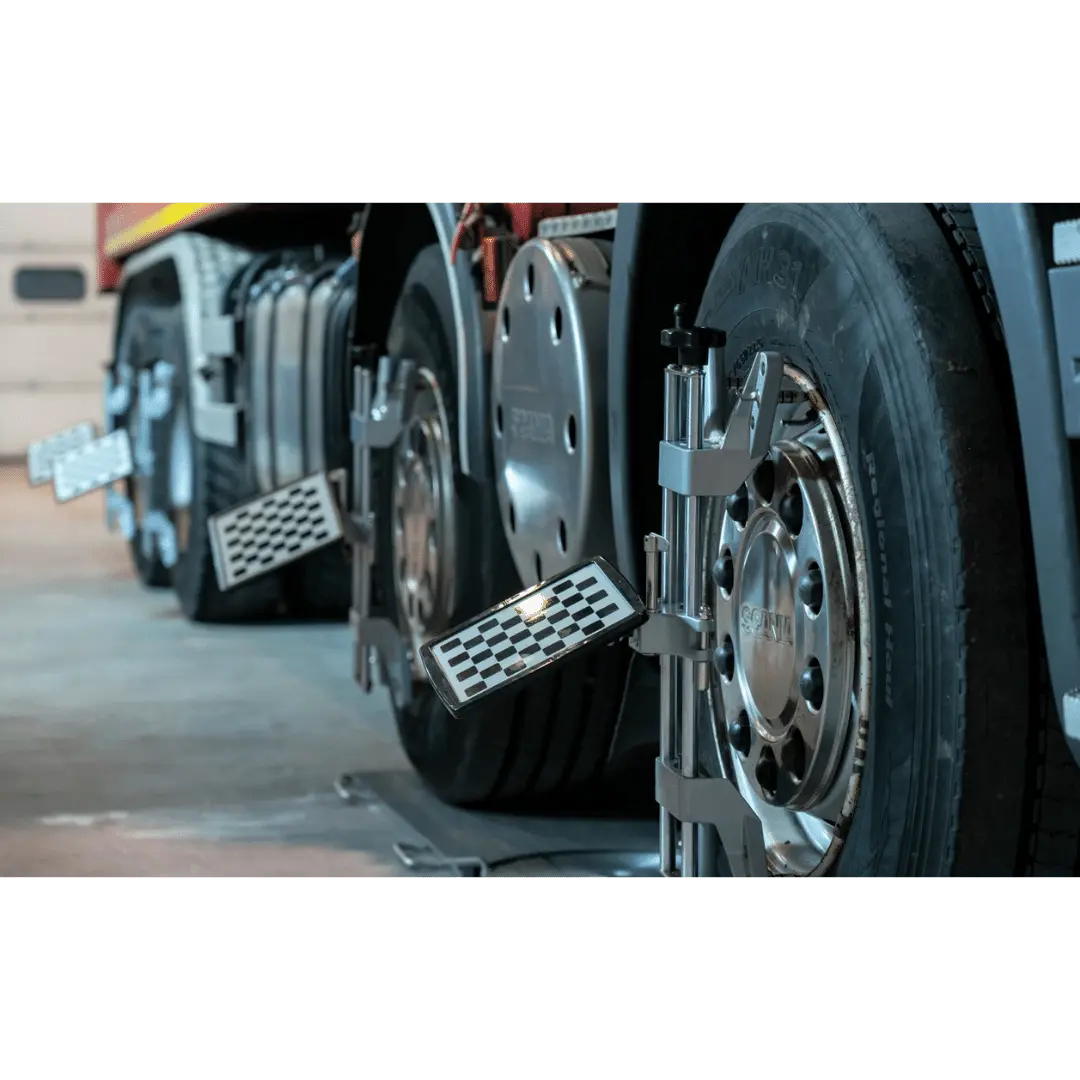

- DESIGNED TO MEASURE LONG VEHICLES & VEHICLES WITH TRAILERS
- HIGH RESOLUTION / EXTENDED RANGE 3D TOWER CAMERAS MEASURES UP TO FOUR AXLES AT ONCE
- INTEGRATED QUICK REFERENCE VEHICLE DATABASE FOR COMMERCIAL VEHICLES

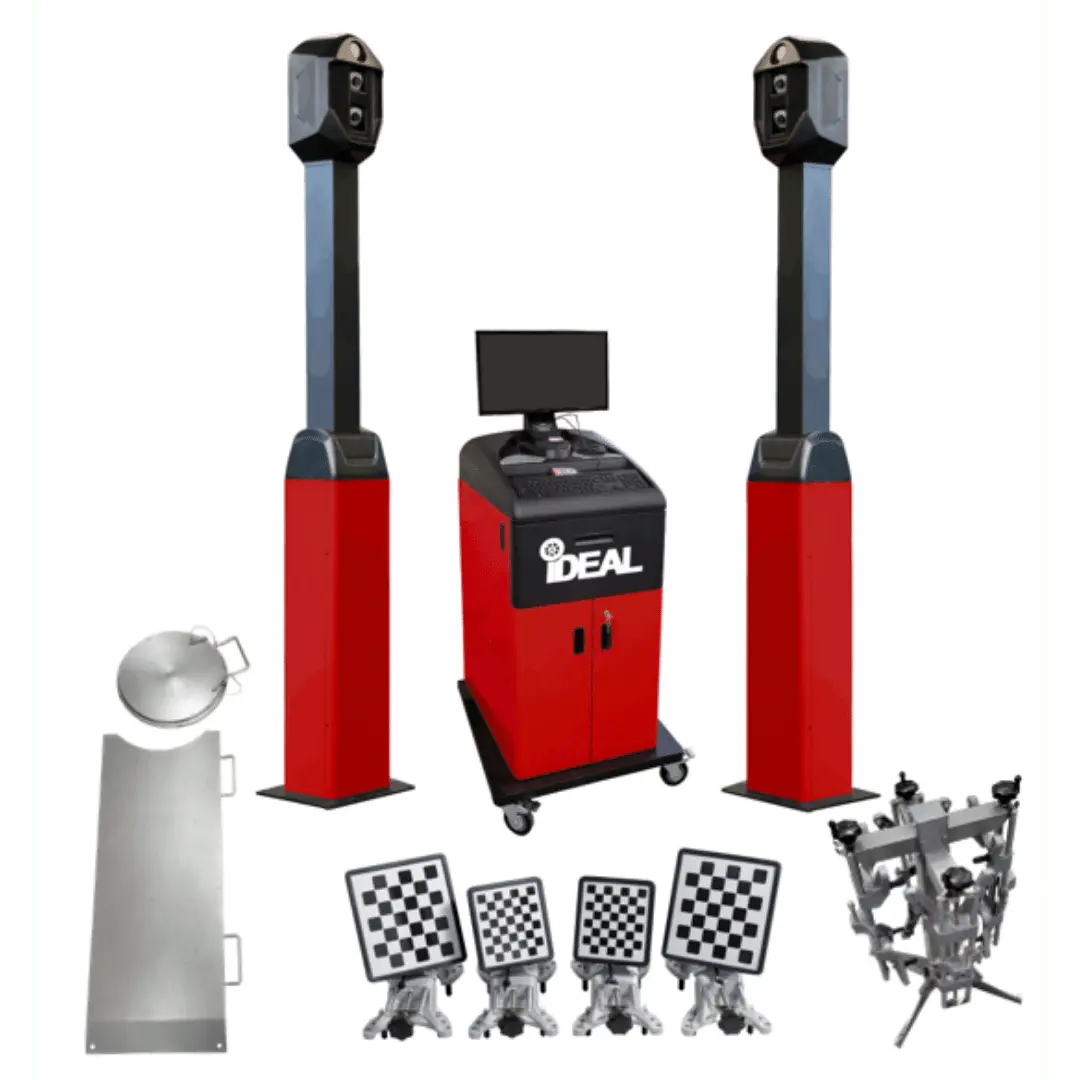

- INCLUDES HD TURNTABLE & DRIVE-ON FLOOR RAMP SETS FOR QUICK & EASY FRONT END ALIGNMENTS
- DYNAMIC LED TOWER GUIDE CHANGES SHAPE TO GUIDE TECHNICIAN
- MOBILE CABINET ALLOWS FOR SIDE OR FRONT CENTERED PLACEMENT FOR ‘DRIVE-THRU’ OR ‘DEAD-END’ SET-UP CONFIGURATIONS
- DRIVE-OVER CABLE PLATES INCLUDED FOR ‘DRIVE-THRU’ CONFIGURATION

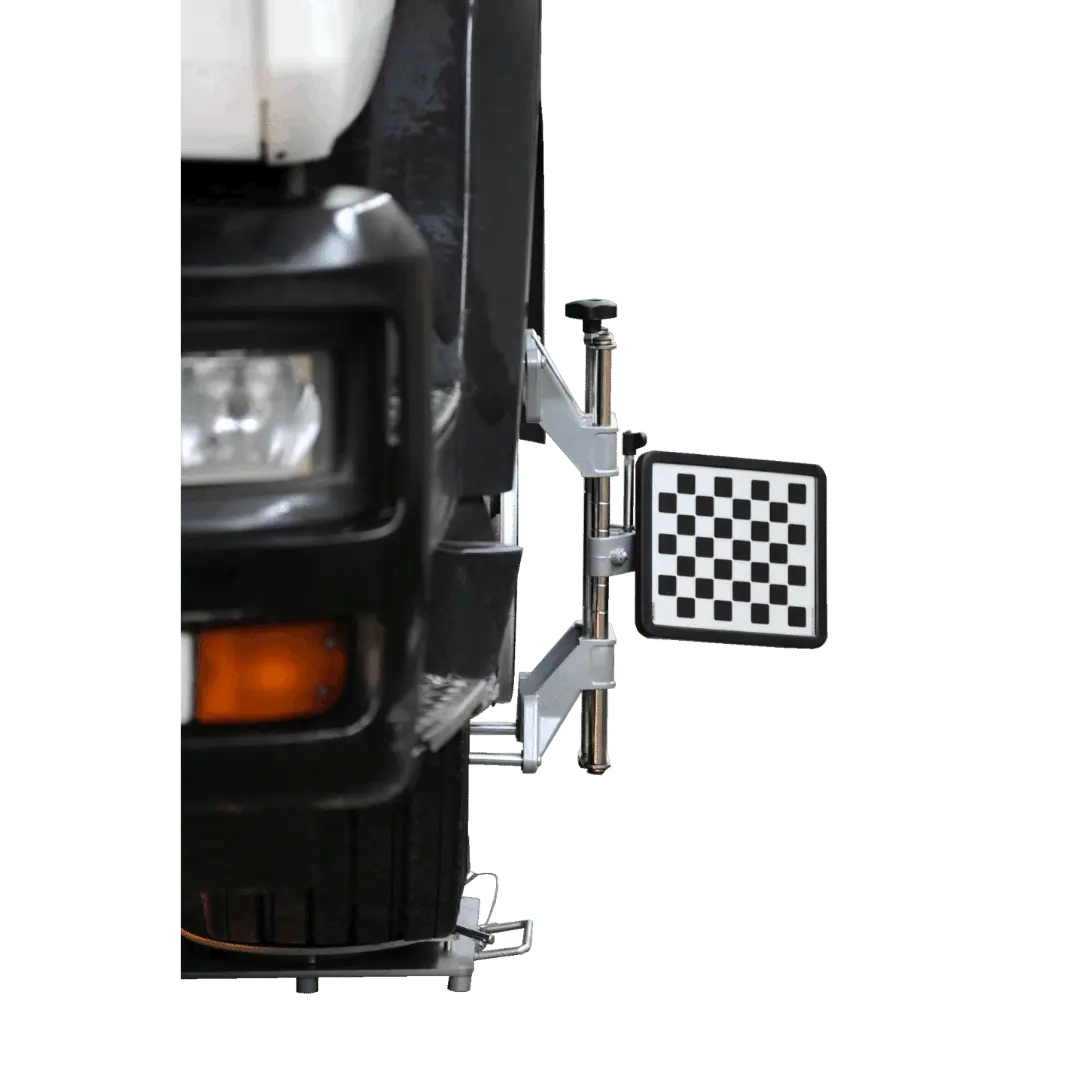

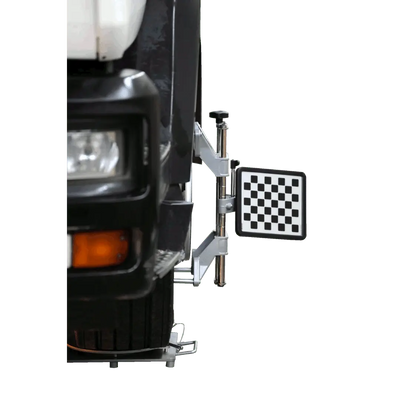

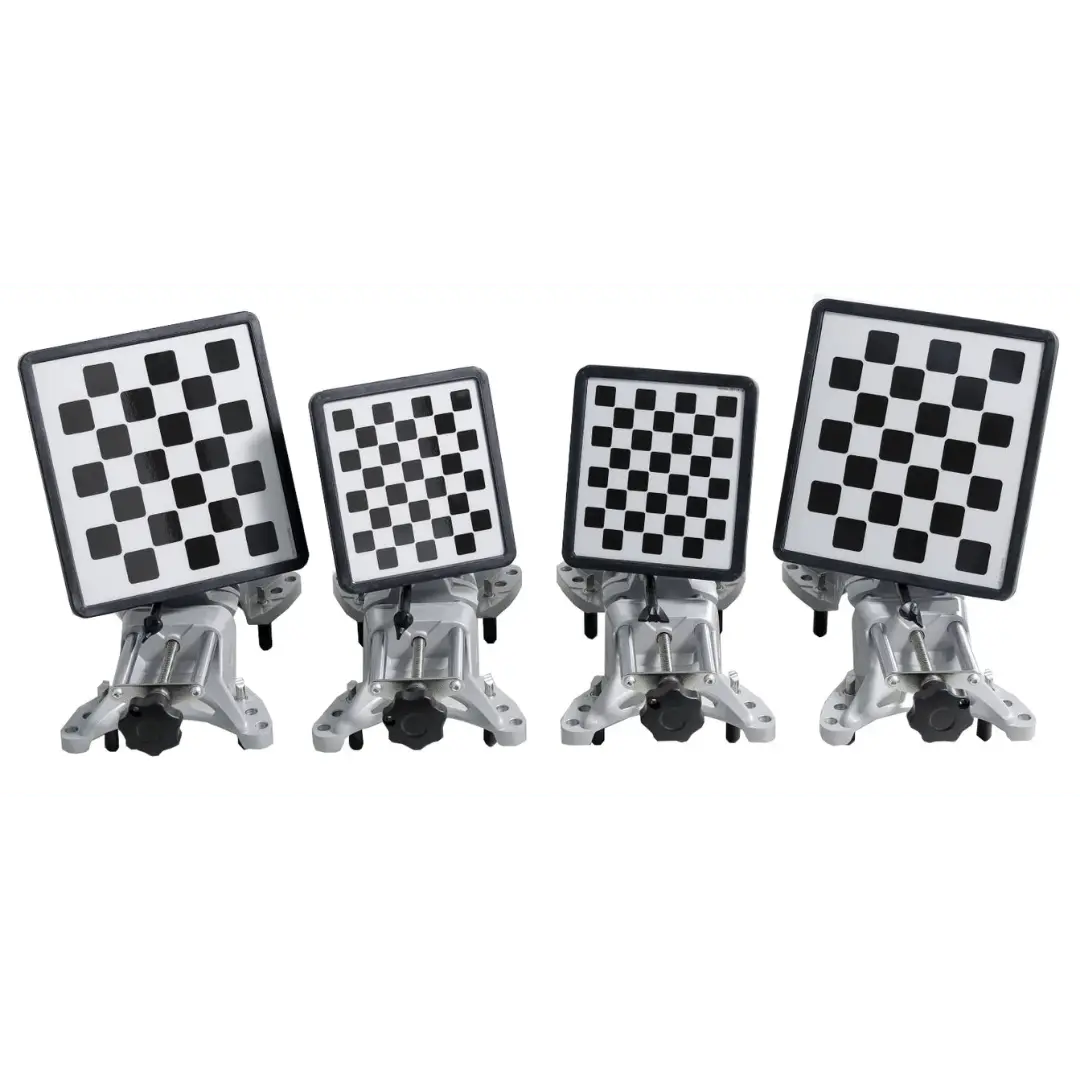

- 8EA COMPACT LIGHTWEIGHT TARGETS
- 8EA ADJUSTABLE WHEEL CLAMPS 15”- 27” FITS MOST STANDARD RIM SIZES

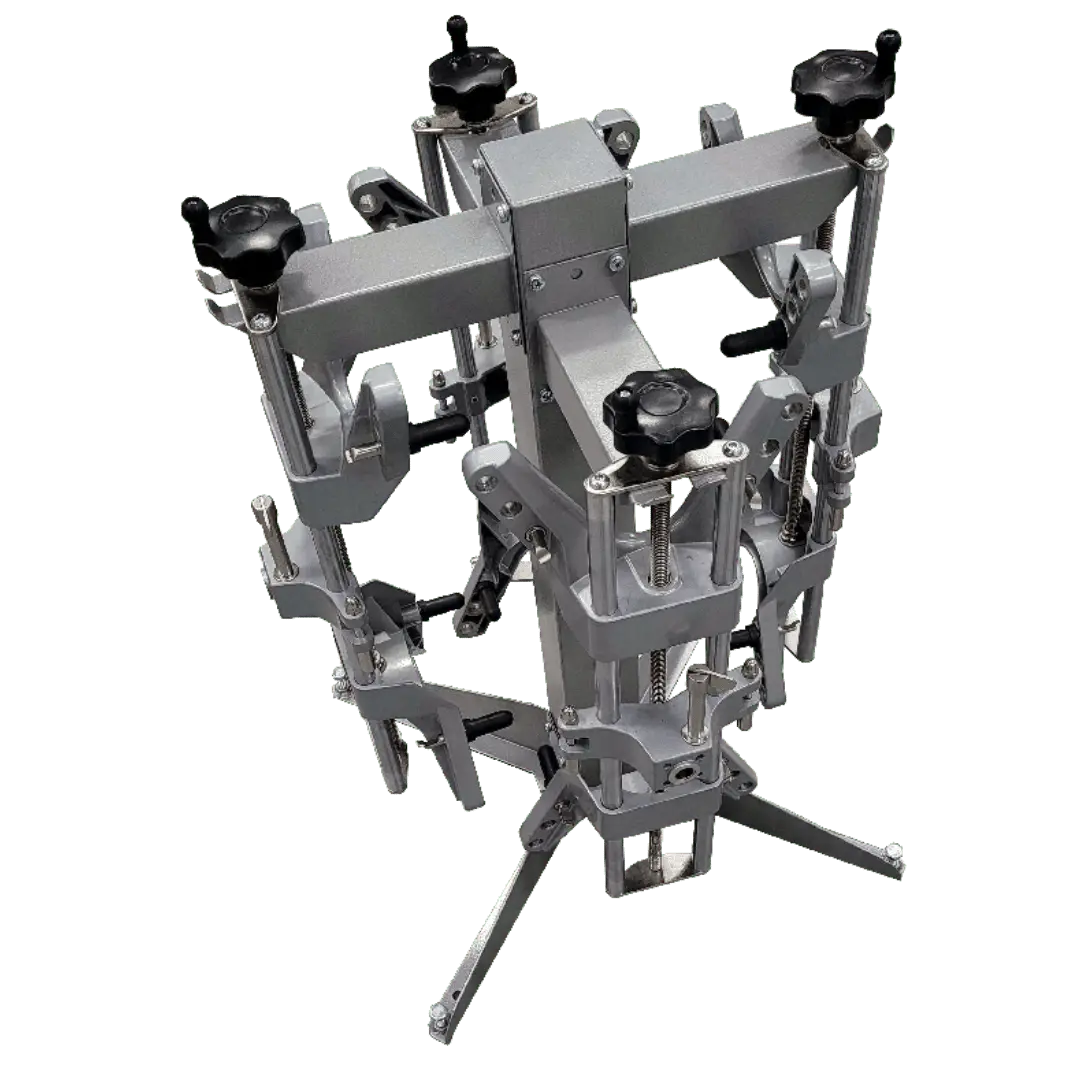

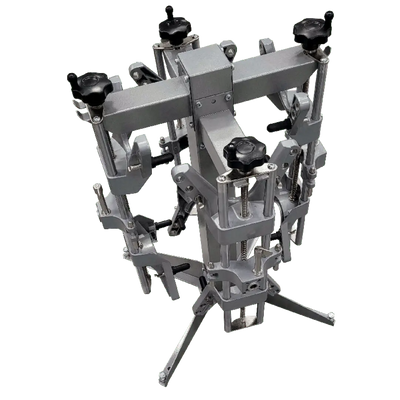

- CONVENIENT STORAGE STANDS FOR WHEEL CLAMPS

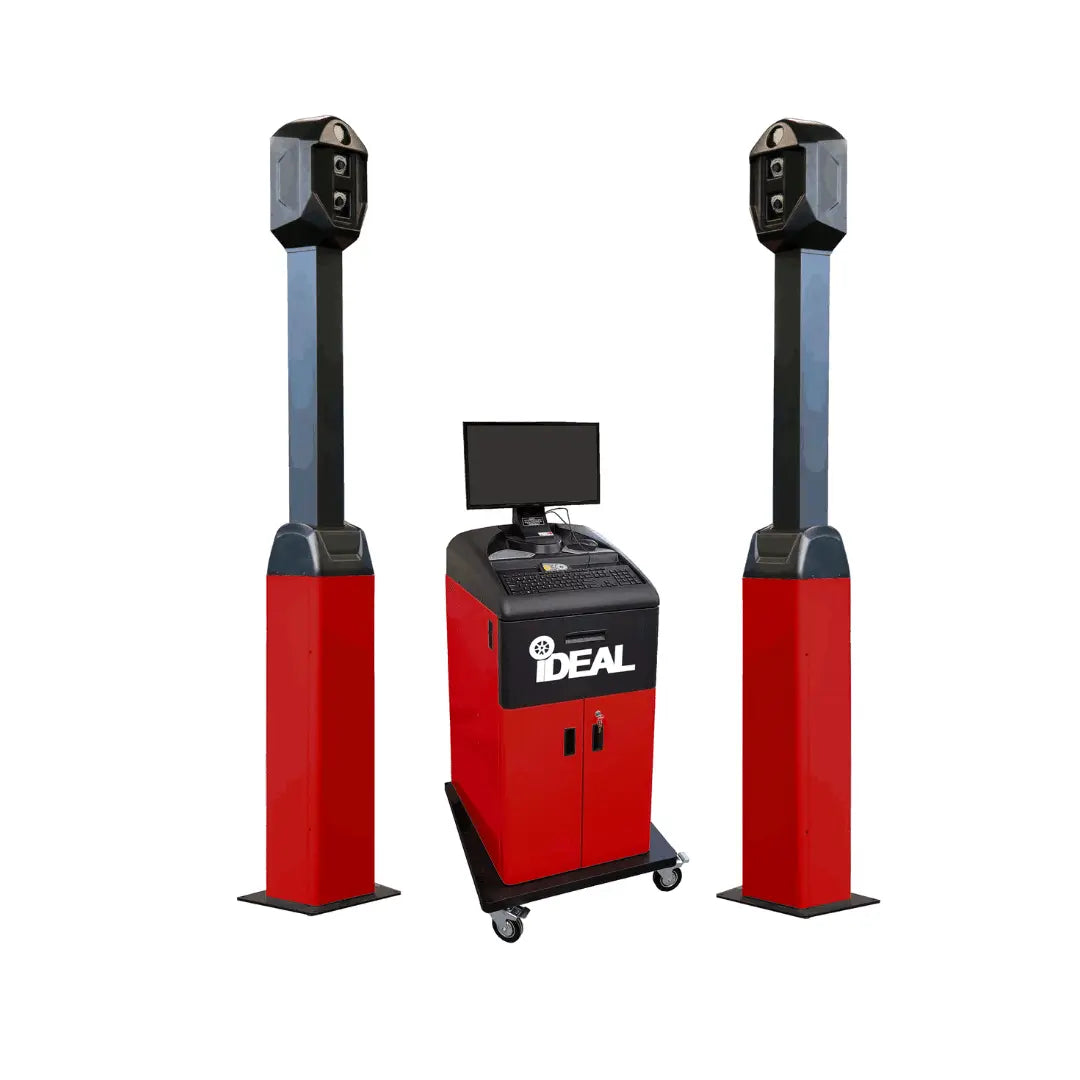

- DUAL TOWERS PROVIDE MAX VIEW RANGE UP TO 50 FT.
- WIRELESS REMOTE CONTROL OPERATION WHEN UNABLE TO REACH CABINET & KEYBOARD
- ILLUSTRATION DIAGRAMS & INTEGRATED HELP SYSTEM
- LIVE READING SCREENS FOR FRONT & REAR AXLE READINGS
- RECALLS / PRINTS CURRENT & PAST INFO FOR CUSTOMIZED REPORTS
- OPTIONAL YEARLY VEHICLE SPEC UPDATES
- CONVENIENT CUSTOMER DATABASE FEATURE
- STEERING WHEEL HOLDER, BRAKE DEPRESSOR & WHEEL CHOCKS INCLUDED
- COMPUTER, MONITOR, KEYBOARD, MOUSE & COLOR PRINTER ALSO INCLUDED
EXPERT USA PRODUCT & WARRANTY SUPPORT:
- FREE TECHNICAL VIDEO & PHONE SUPPORT FOR INITIAL SET-UP & OPERATIONAL INSTRUCTIONS
- MANUFACTURER LIMITED WARRANTY: 1 YEAR LIMITED PARTS & LABOR
- SOFTWARE UPDATES AVAILABLE ON AN ANNUAL BASIS
Product Specifications
| Aligner Model | IWA-60-8500-HD-K |
|---|---|
| Aligner Type | Heavy Duty 3D Multi-Axle Imaging |
| Operator System | Windows |
| Software | Techno Vector 7 |
| Accuracy | 0.01 Degrees |
| Certification | CE |
| Target Size (8) | Standard |
| Cameras (Total) | 4 |
| Lift Compatible | No |
| 4 Post Lift Compatible | No |
| Standard Wheel Clamps (8) | 15" - 27" |
| Toe Adjustment | Yes |
| Raised Mode | Yes |
| Live Caster | Yes |
| Runout Compensation | Yes |
| Wheel Alignment Modes | Variable 2-8 Wheels |
| Database Update | Yes |
| Customer Manager | Yes |
| Max Width | Up to 13 feet |
| Max Wheelbase | Up to 50 feet |
| Power | 120V-15 Amp / 1PH / 60HZ |
| Shipping Weight | 1,285 lbs. (3 pieces) |
