Challenger Lifts CL20-2 20000 Lbs Heavy Duty Symmetric 2 Post Lift (Extended Height)
- Free Shipping
- Certified Car Lifts
- 30-Day Hassle-Free Returns
- In stock, ready to ship

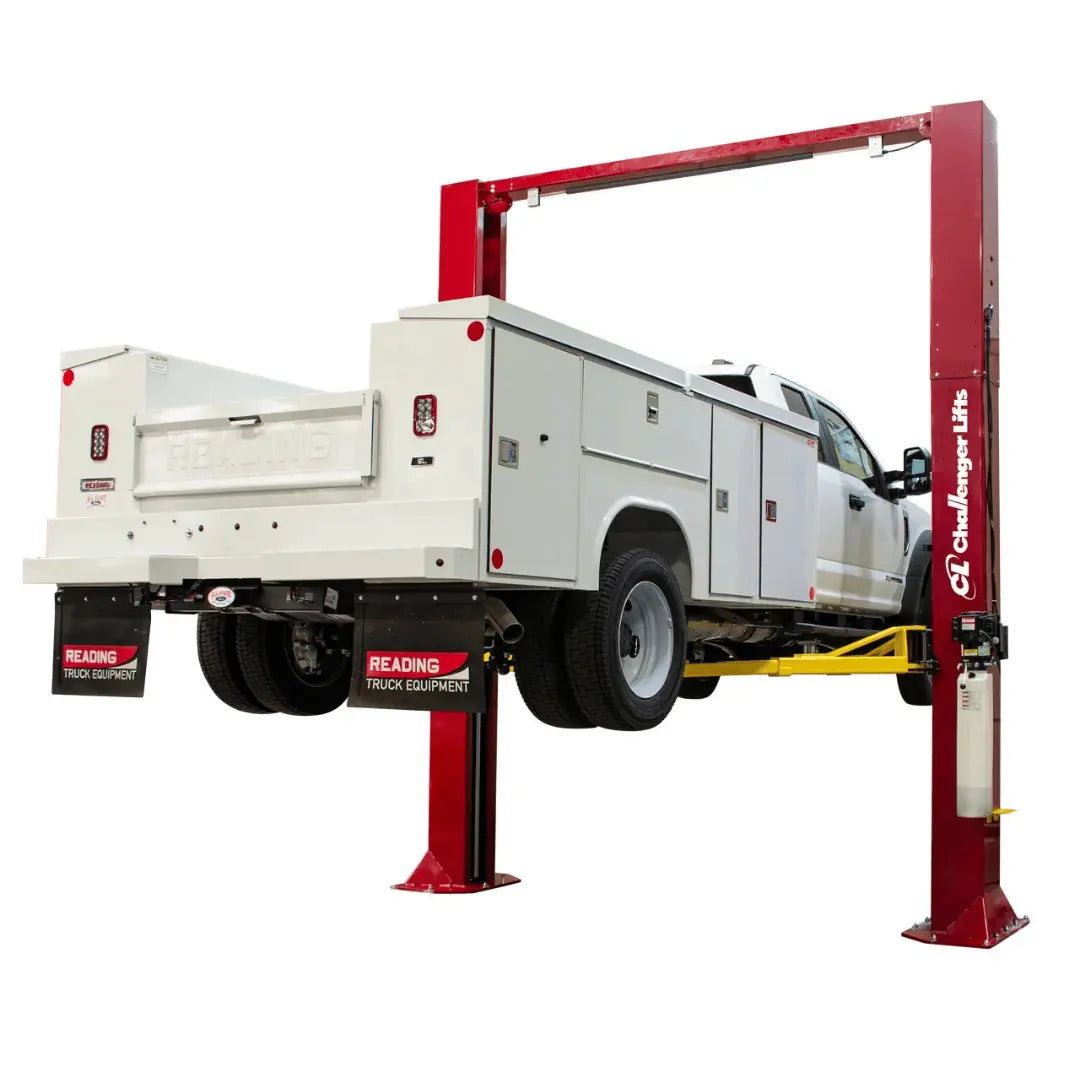

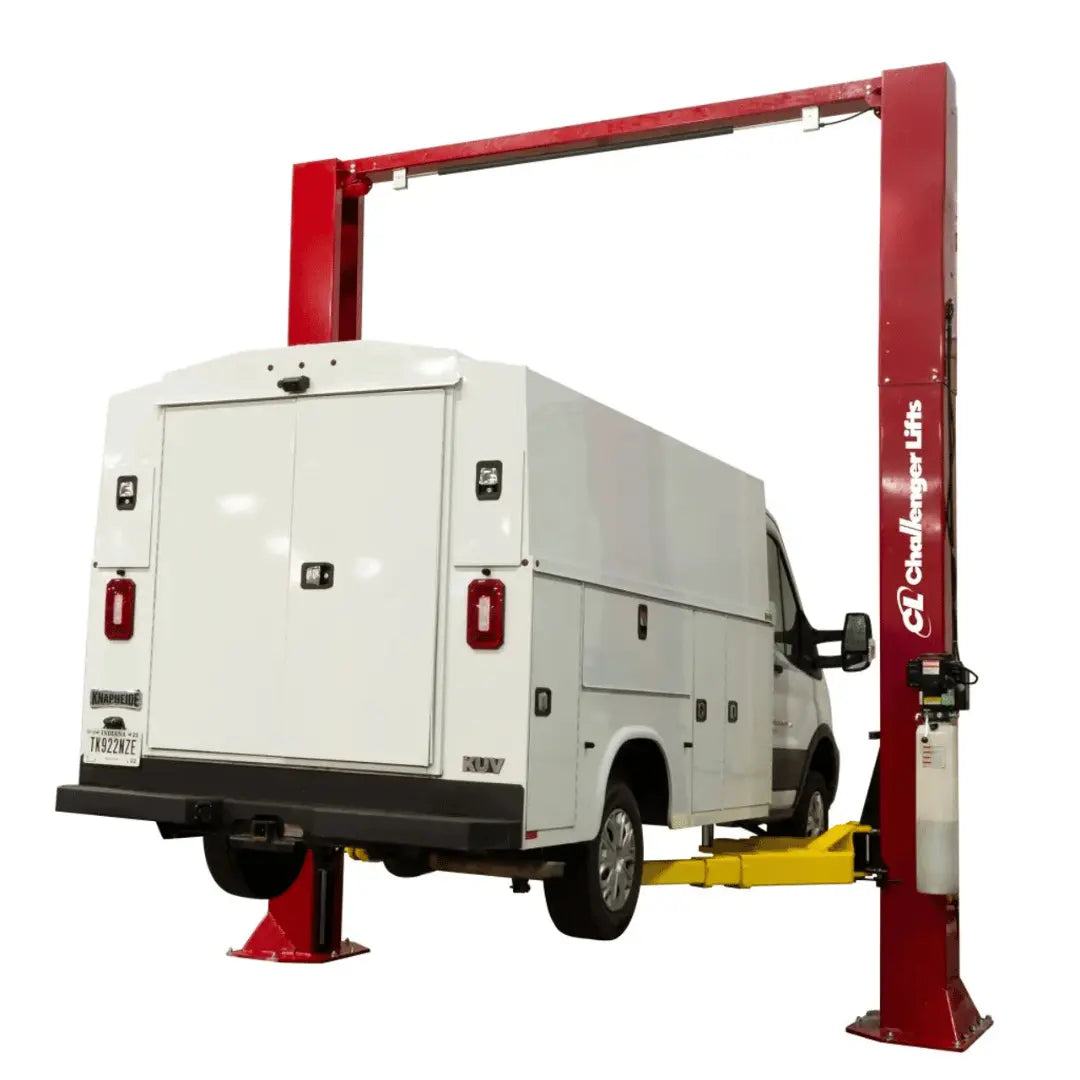

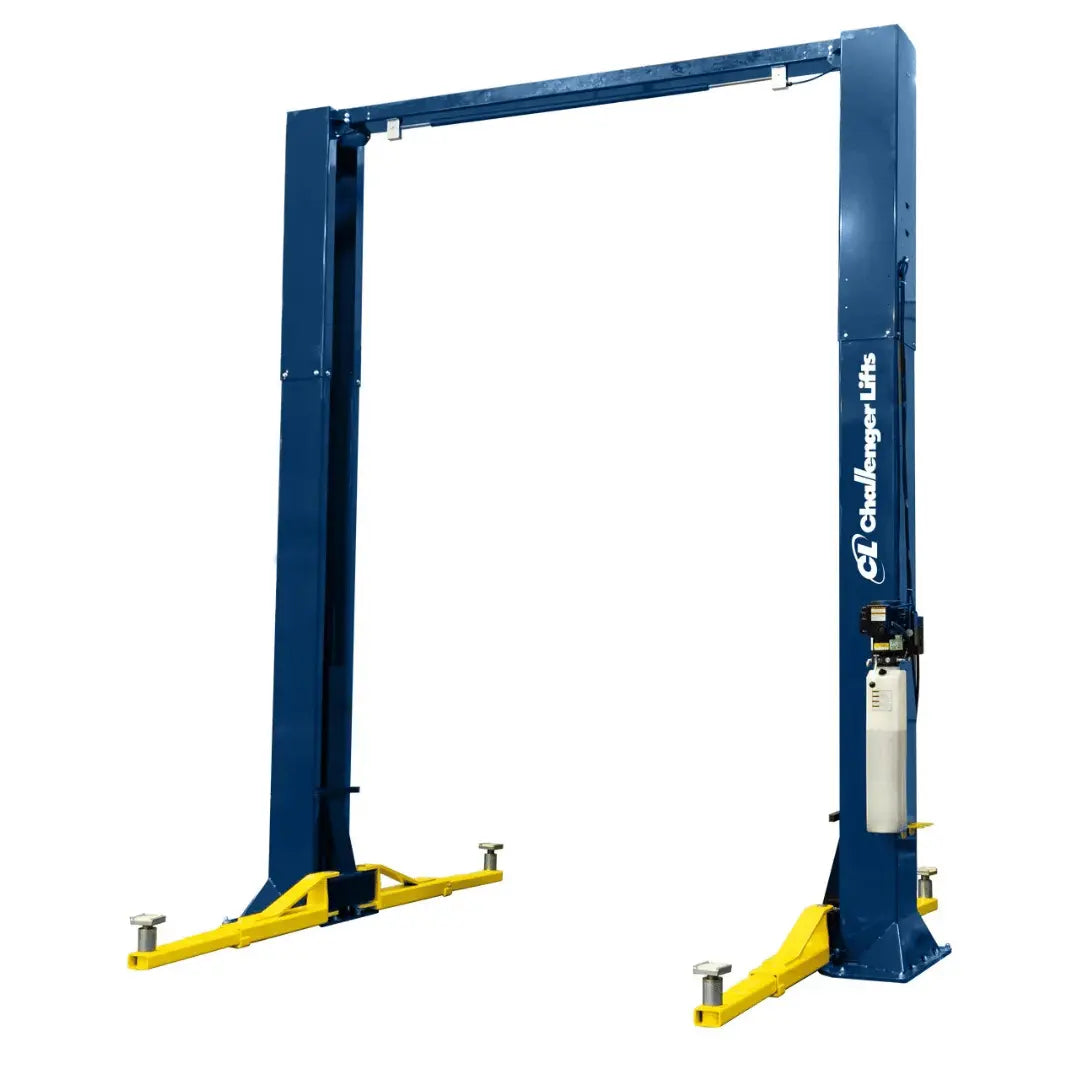

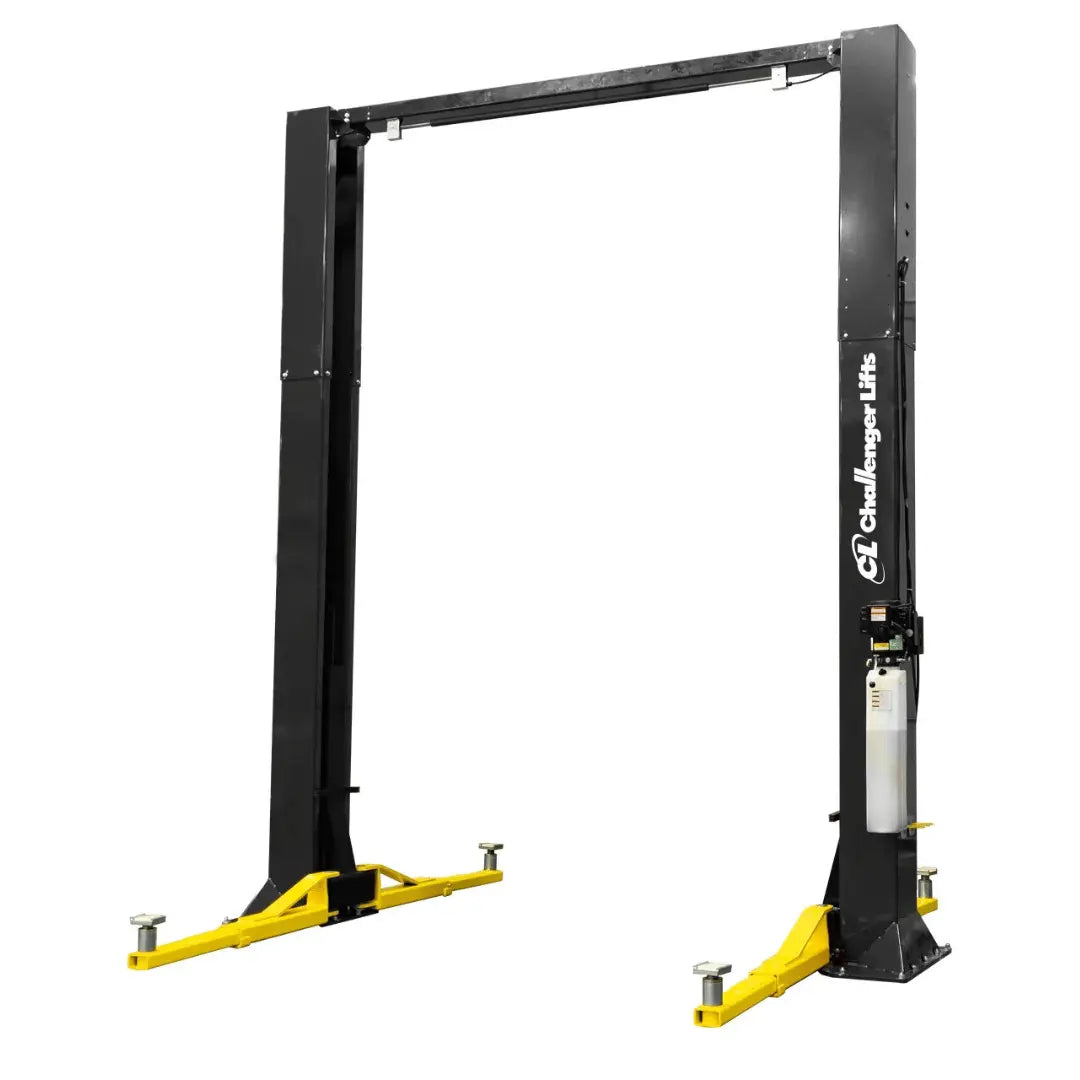

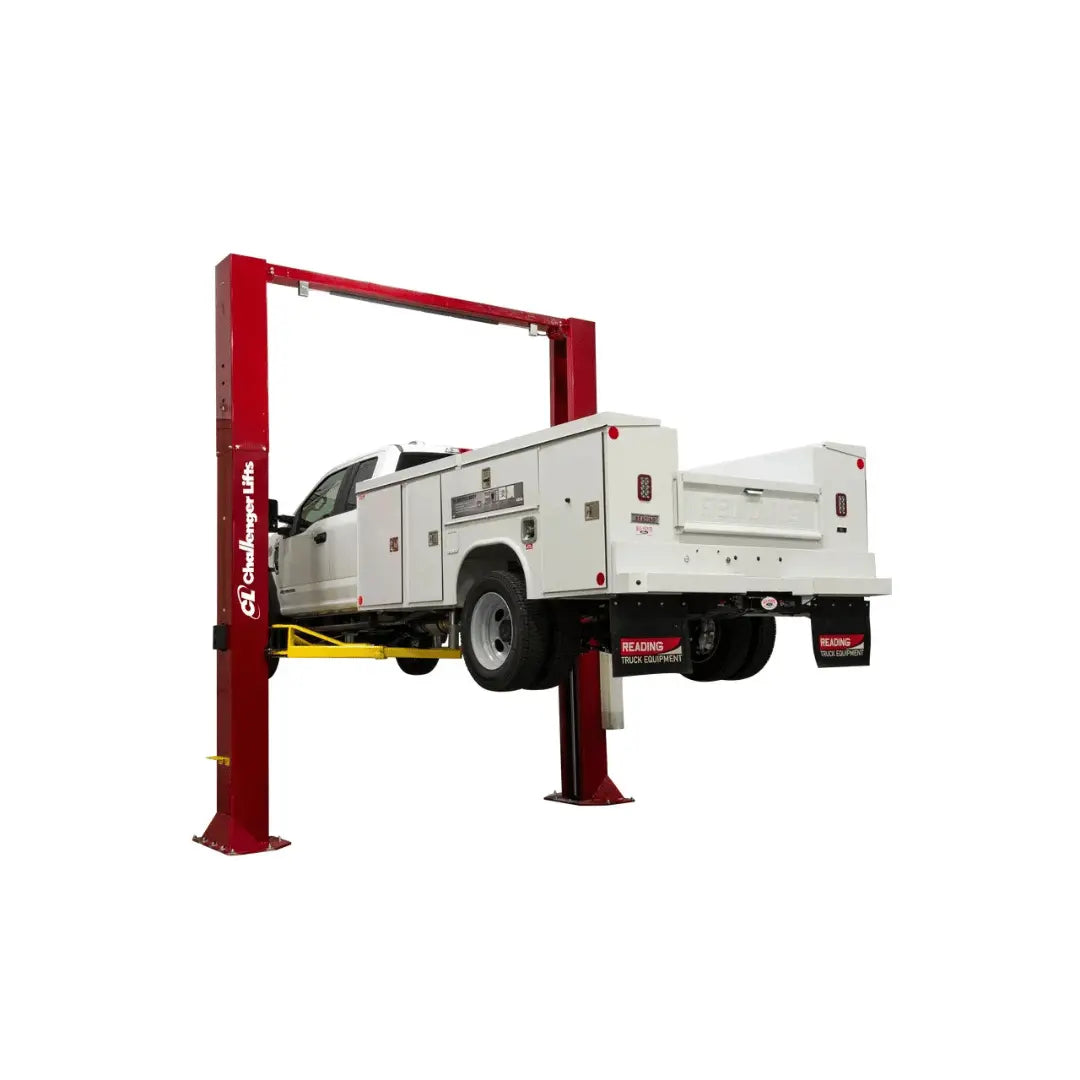

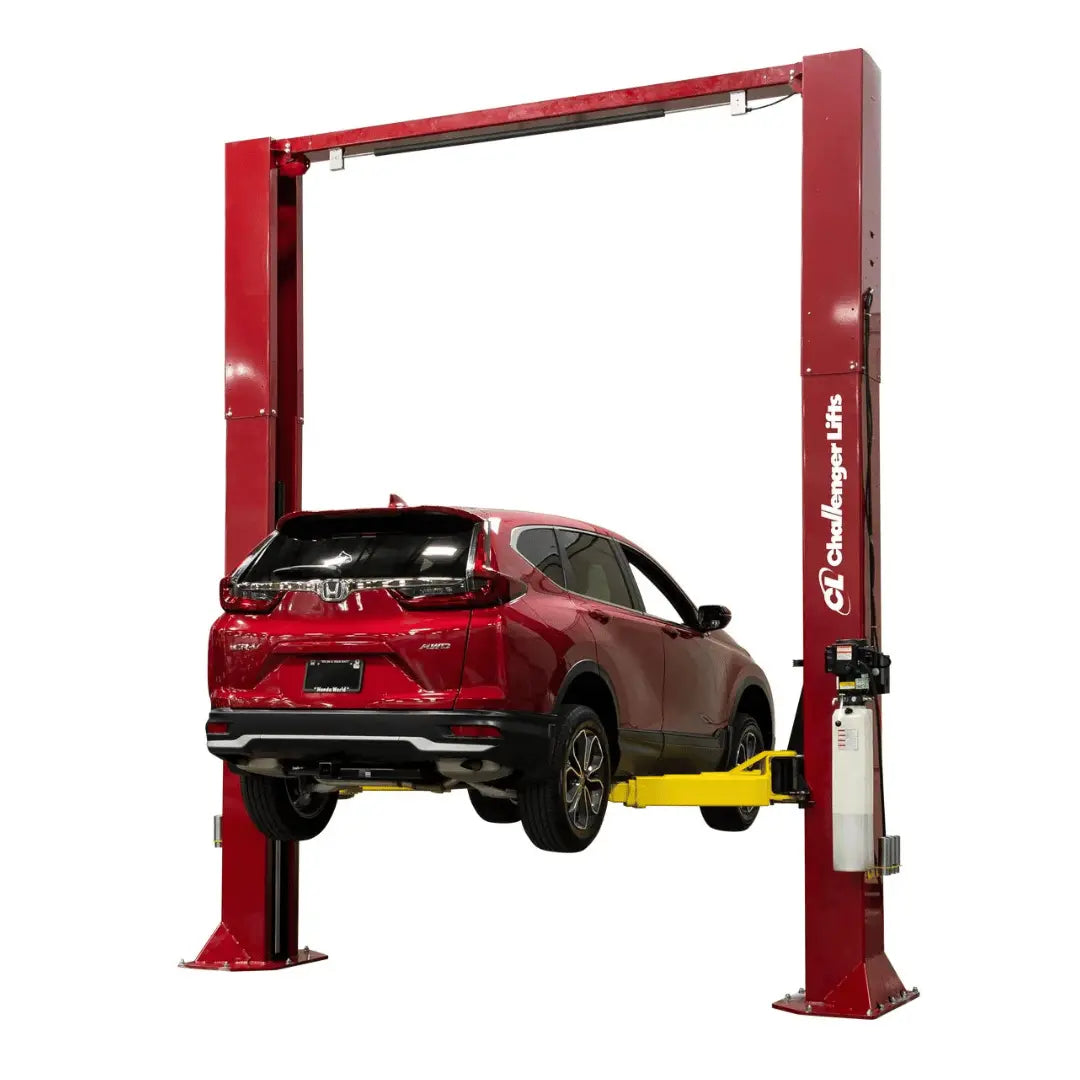

Challenger Lifts CL20-2 20000 Lbs Heavy Duty Symmetric 2 Post Lift (Extended Height)
Introducing our heavy-duty 2 Post Lift solution, specifically engineered for vehicles weighing up to 20,000 lbs. Our Challenger 2 post lift is wider and taller, providing a robust and durable option for your fleet maintenance needs. The 2-Stage arms ensure stability during lifting, while the adjustable width makes it suitable for various vehicle sizes. The optional 2′ column extensions allow your shop to handle even taller vehicles.
This versatile lift is essential for any fleet maintenance operation. With adjustable columns and superior strength, this lift is your ultimate lifting solution for heavy-duty vehicles. ALI® Certified.
Product Features
- Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
- Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
- 60” lifting carriage design increases lift life.
- Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
- Dual integrated rubber door guards to prevent door damage.
Product Specifications
| Model | CL20-2 |
|---|---|
| Description | 20K Extended Height |
| Lifting Capacity | 20,000 lbs. |
| Maximum Load Per Arm | 5,000 lbs. |
| Lift Configuration | Symmetric |
| Rise Time | 62s |
| Rise Height (Maximum with Stack Adapters) | Min. 76.6" Max. 84.6" |
| Screw Pad Height | Min. 6.2" Max. 7.6" |
| Overall Height Options | 186", 192", 198" |
| Overall Width Options | 166.75", 160.75", 154.75" |
| Arm Configuration | 2-Stage Front/Rear |
| Arm Reach | Min. 38.5" Max. 62" |
| Between Columns | 120", 126", 132" |
| Drive-Thru Clearance | 104.25", 110.25", 116.25" |
| Floor to Overhead Switch | 179", 185", 191" |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi |
| Min. Ceiling Height Required | 15'8", 16'2", 16'8" |
