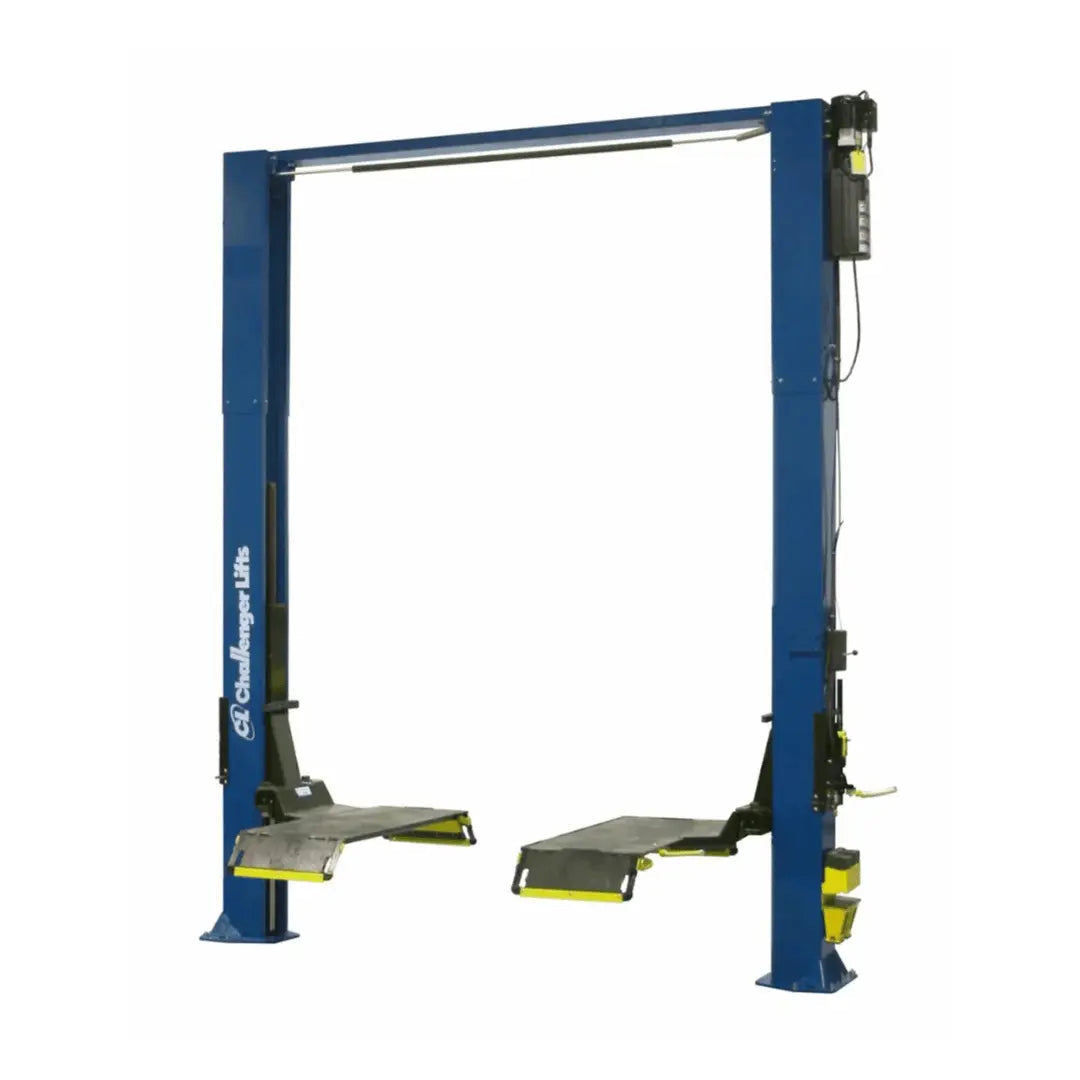

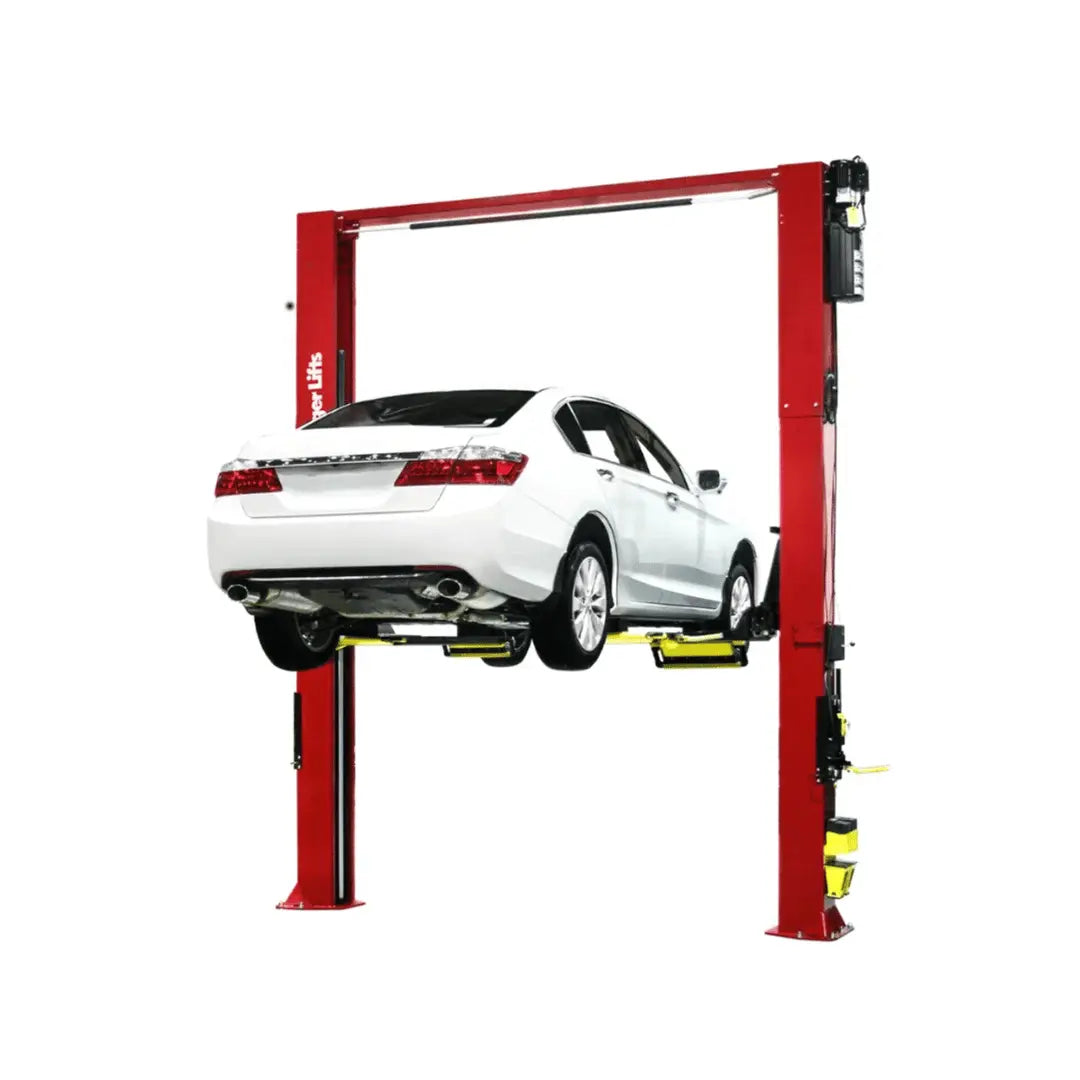

Challenger Lifts CL10A-XP9 10000 lbs Versymmetric® Adjustable 2 Post Car Lift

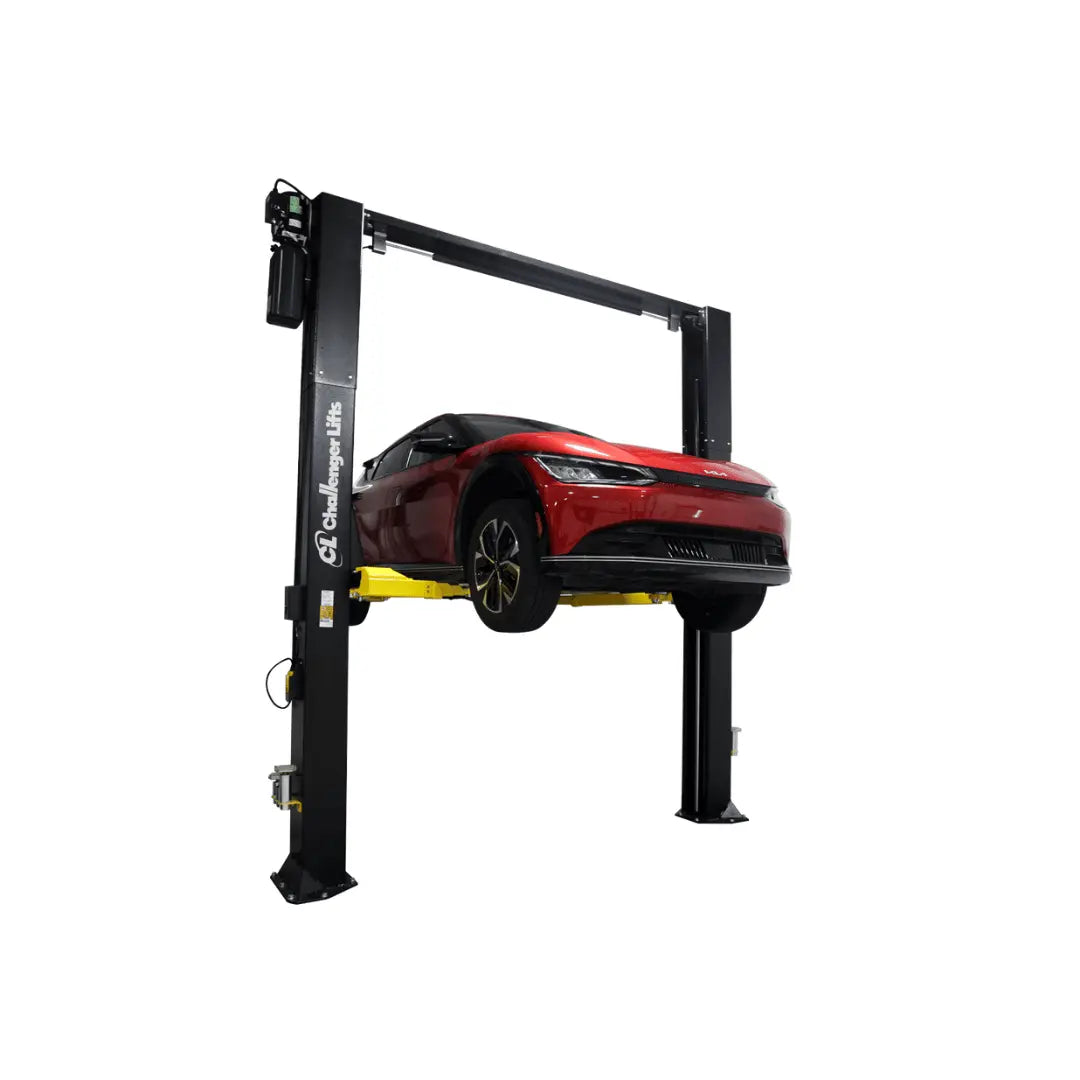

The Challenger CL10A-XP9 10,000 lbs. Versymmetric Adjustable 2-Post Car Lift is engineered for shops that require maximum versatility and durability when servicing a broad spectrum of vehicles. Designed with Challenger's advanced Versymmetric technology, this lift combines symmetric and asymmetric lifting capabilities within one unit, enabling technicians to position vehicles according to their unique requirements. This dual functionality provides the flexibility to work efficiently on everything from compact cars to full-size trucks, making it an invaluable asset for any high-traffic shop or garage handling diverse vehicle types.

With a robust lifting capacity of 10,000 lbs., the CL10A-XP9 can accommodate even heavy-duty vehicles with ease. The lift’s adjustable height, reaching up to an impressive 11' 10-5/8", offers ample clearance, allowing technicians to fully access the undercarriage and perform extensive repairs without obstruction. Its low-profile 3-stage front arms and 2-stage rear arms are designed for versatility, allowing the lift to adapt to various wheelbases and frame types seamlessly. These multi-stage arms make loading vehicles easier, providing a stable lift that prioritizes both safety and accessibility.

Built for long-lasting performance, the CL10A-XP9 is designed with Challenger's commitment to reliability, featuring heavy-duty construction and advanced hydraulic systems for smooth and consistent operation. Its spacious drive-thru clearance enhances maneuverability, making it convenient for vehicles to enter and exit, which is particularly beneficial in busy service environments. The CL10A-XP9 not only boosts productivity but also creates a safer workspace, allowing technicians to handle a range of repairs, from basic maintenance to complex diagnostics, all with a single, adaptable lift solution.

Product Features

  • 10,000 lbs. lift capacity
  • Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
  • Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
  • 48 in. elongated carriage design increases lift life
  • Three settings for width adjustment, from 11′ 6.5″ to 12′ 6.5″
  • Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
  • Padded overhead shut off system prevents vehicle damage

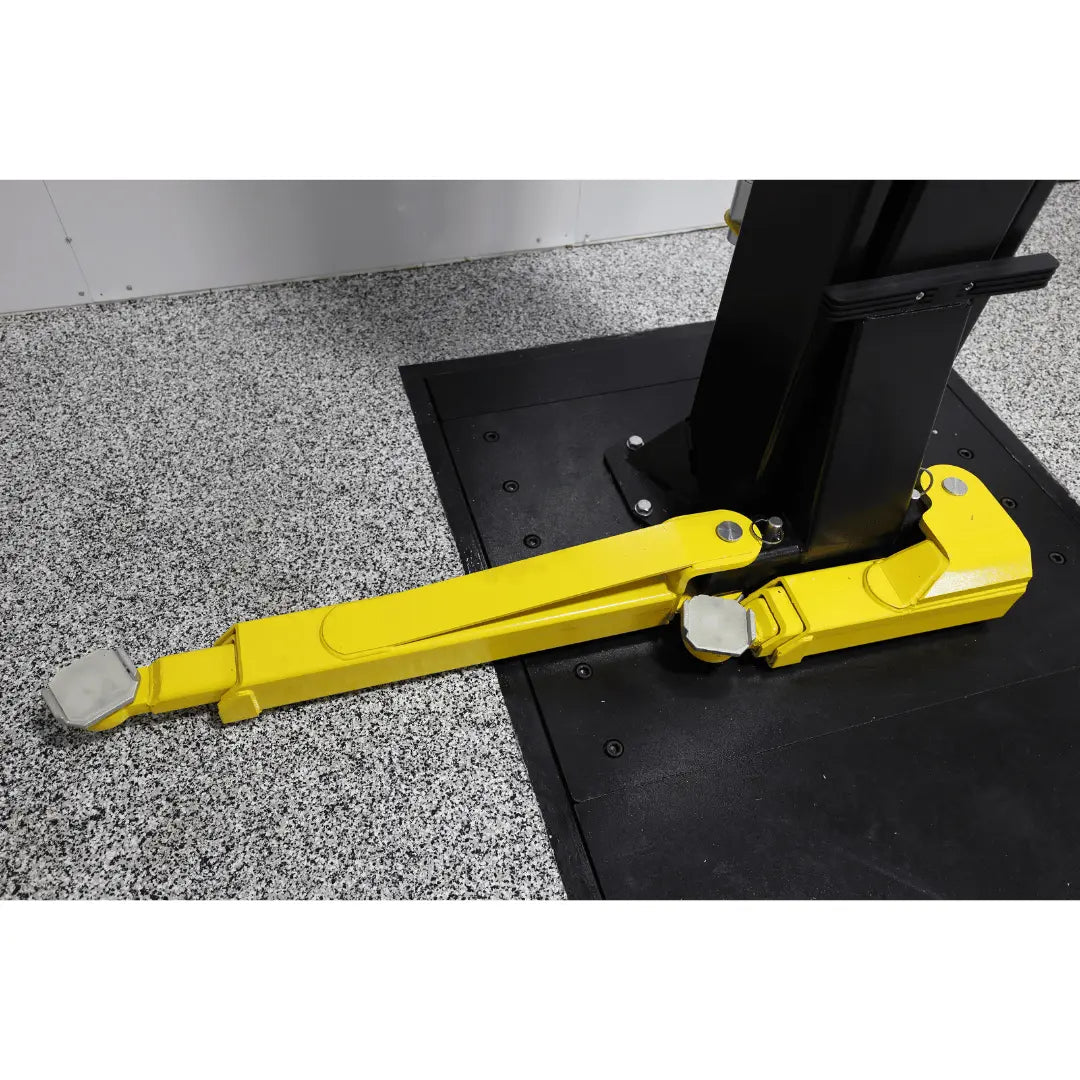

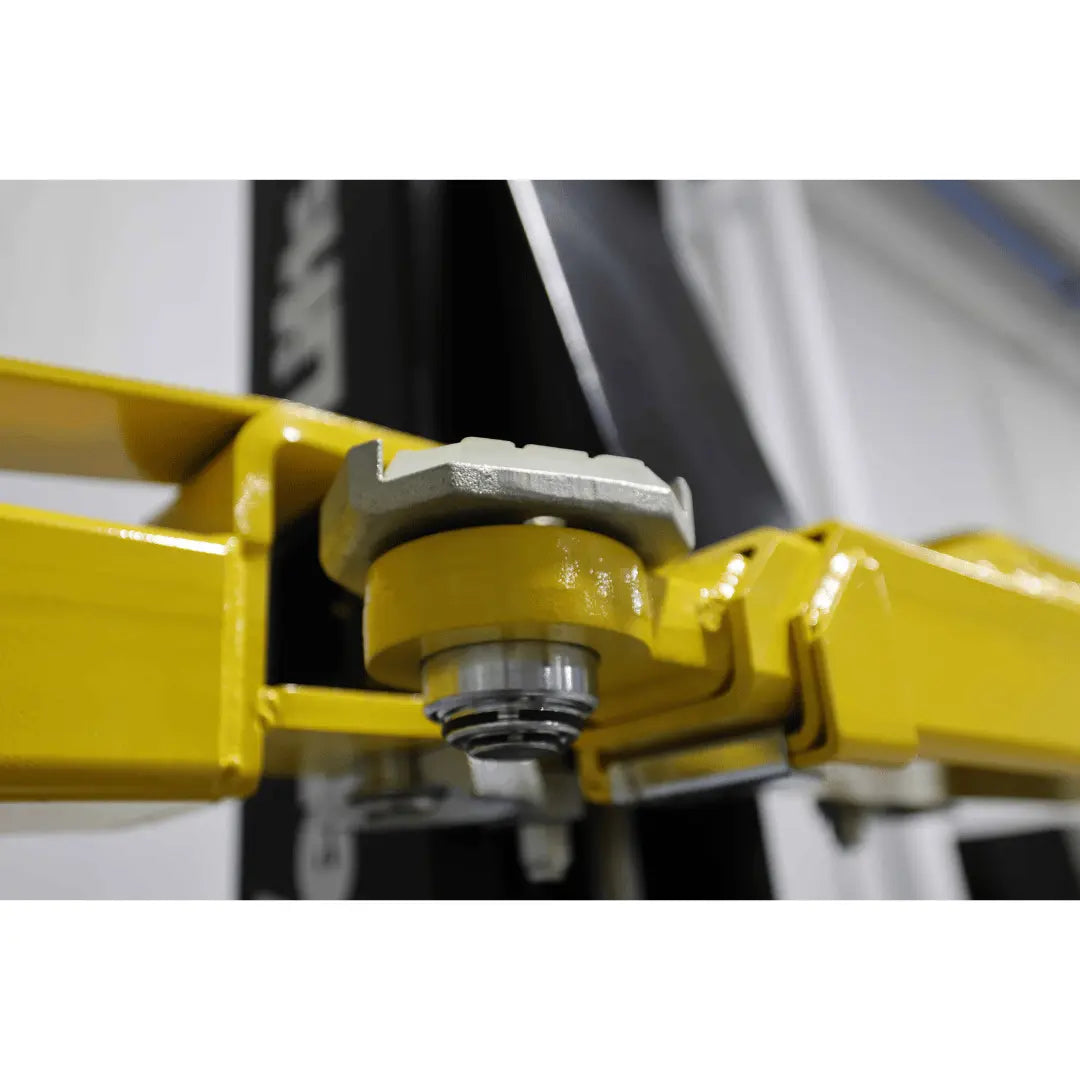

  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • Fully gusseted base plate design increases column rigidity

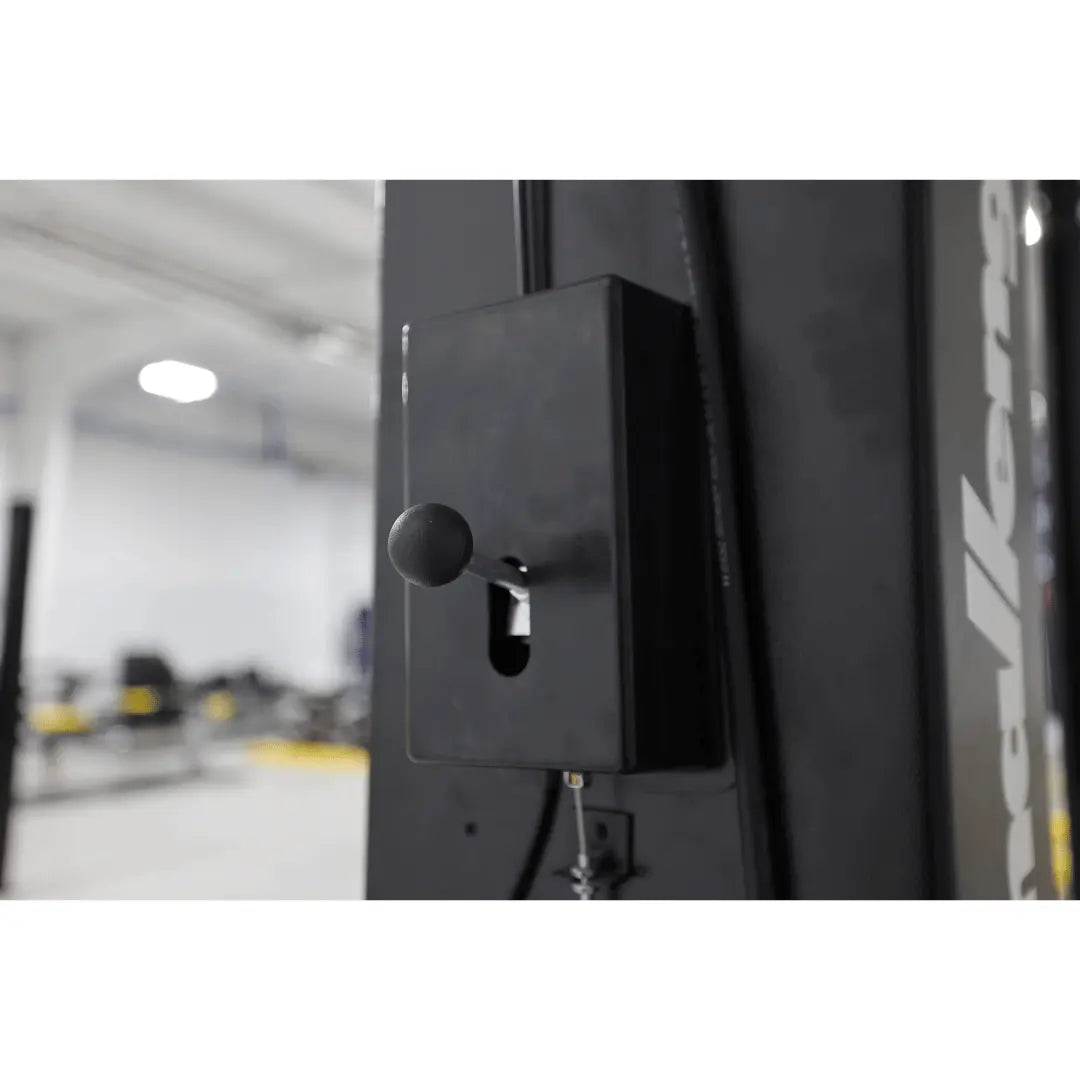

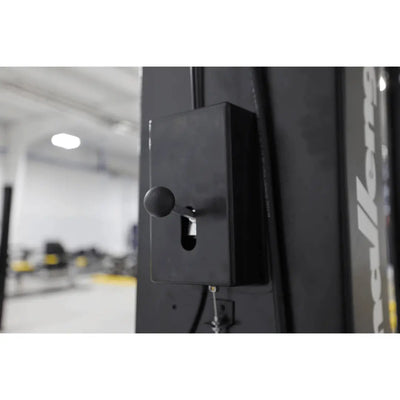

  • Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Premium powder coat finish provides long-lasting durability

Product Specifications

Model CL10A-XP9
Lifting Capacity 9,000 lbs.

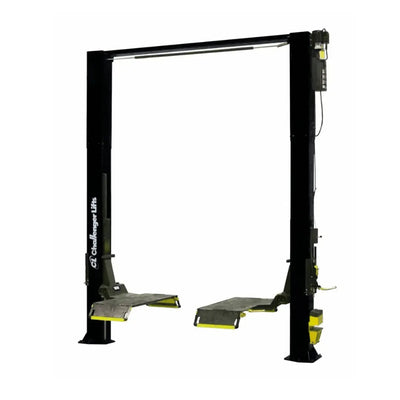

Lift Configuration Drive-on Pads
Arm Configuration NA
Rise Height 70”
Overall Height 11' 2" or 11' 8"
Overall Height (Cylinder Extended) 11' 11"
2’ Height Extension Available Yes
3’ Height Extension Available Yes
Overall Width 11' 6.5" / 12' .5" / 12' 6.5"
Drive-Thru Clearance 100" / 106" / 112"
Floor to Overhead Switch 10' 8.5" - 11' 2.5"
Front Arm Reach NA
Rear Arm Reach NA
Screw Pad Height NA
Inside Columns NA
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 38s
Ceiling Height Required 12'
ALI/ETL Certified Yes

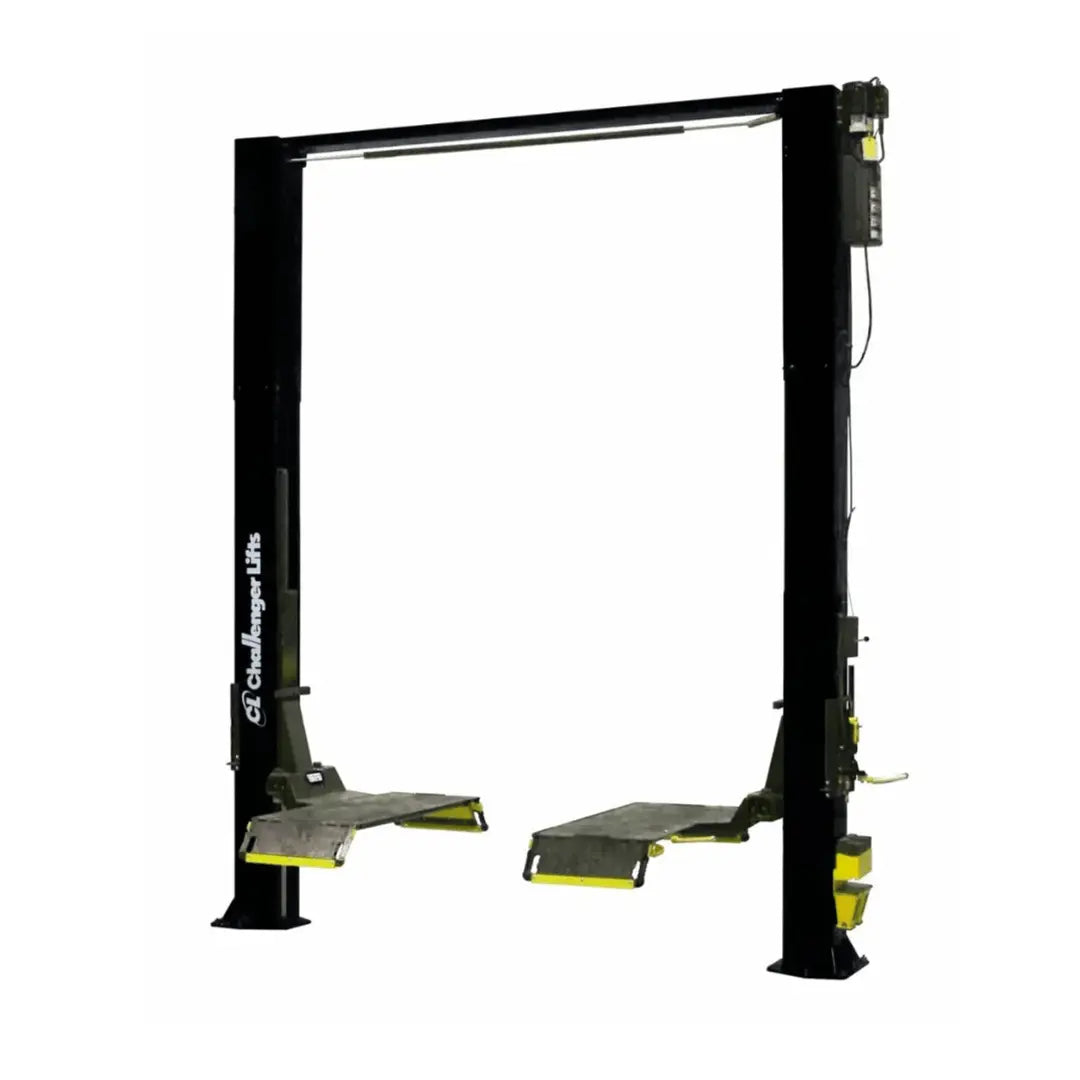

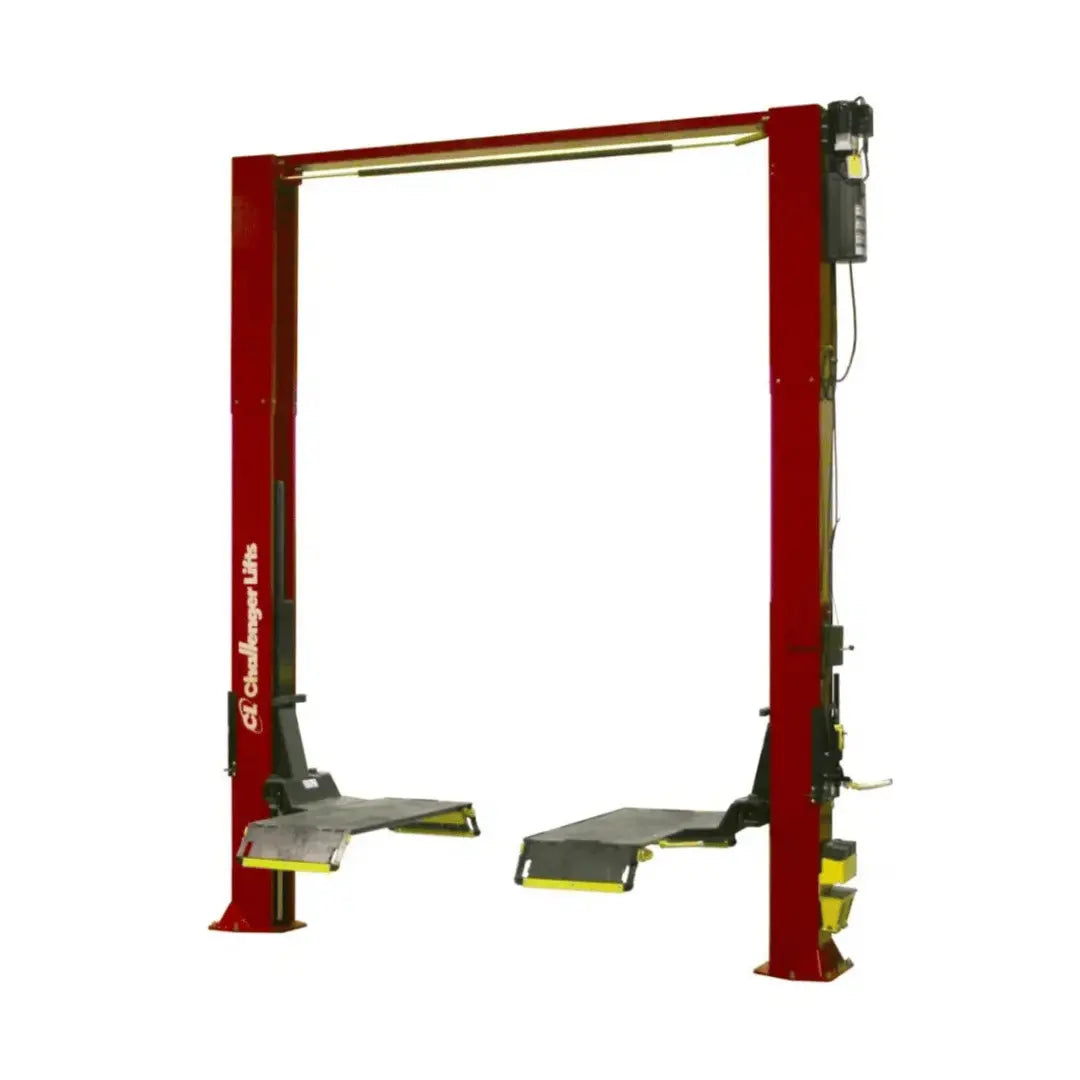

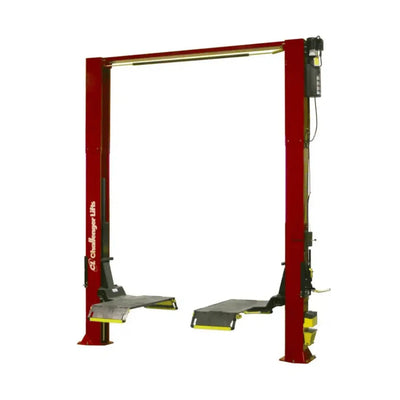

Colors Available Red, Blue, Black
