Challenger Lifts CL10-XP9-QC 9000 lbs 2 Post Lift - Drive-On Pad

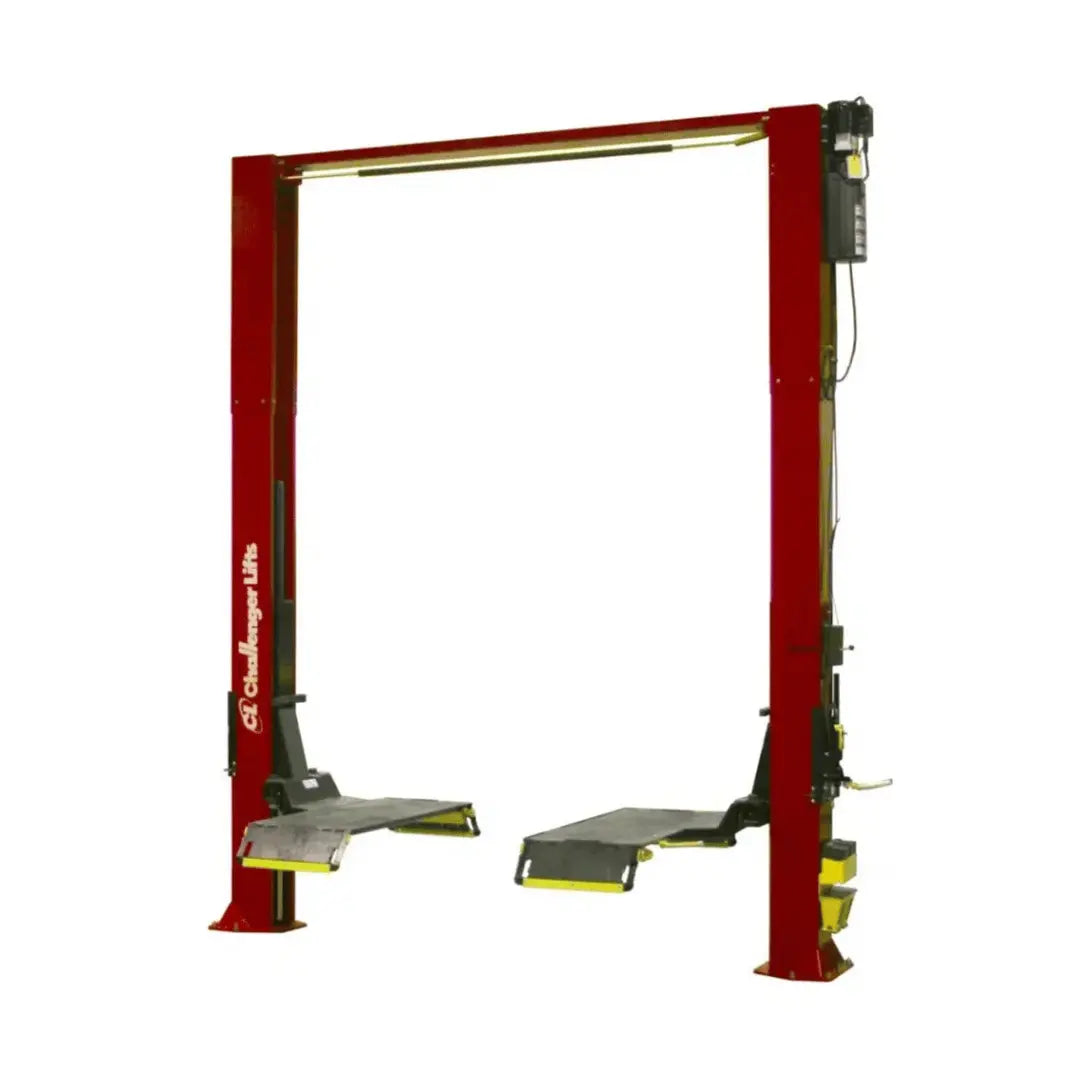

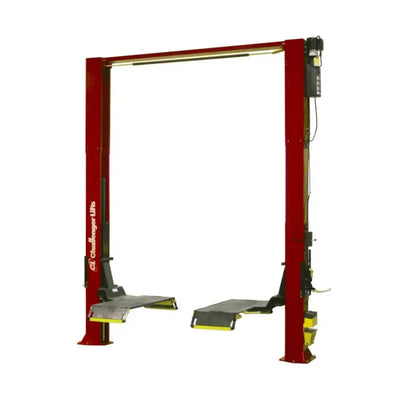

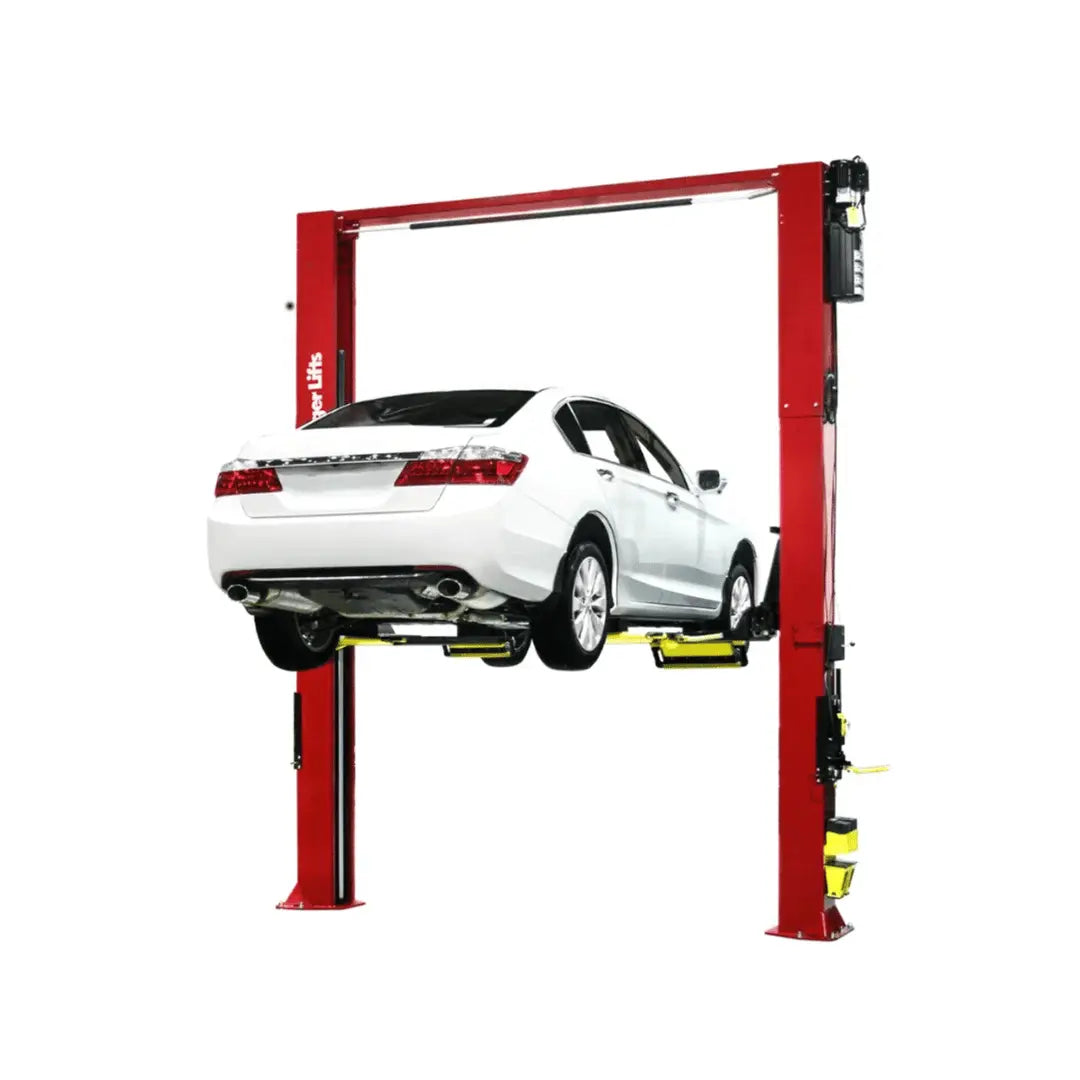

Challenger’s 9,000 lb. capacity CL10XP9 2 post lift offers a drive-on pad for the quickest vehicle spotting designed for express bays. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop. QuickCycle™ models improve lifting speed to just 27 seconds rise and 17 seconds lower. Also, adjustable height and width options are available, making the CL10-XP9 the best choice for any service professional. Expand your service potential with our most versatile, easy-to-operate lift. ALI® certified.
Product Features
- 9,000 lb. lift capacity
- Drive-on style pad aids in quick vehicle spotting for express bays
- Low-profile pad design minimizes vehicle clearance issues
- Reinforced front and rear access ramps are designed to easily flip up and lock to extend the platform length to accommodate longer wheelbase vehicles
- Standard column mounted spotting block storage caddy helps keep a safe and clean work environment
- 48″ elongated carriage design increases lift life
- Oversized 5″ diameter pulley and heavy duty 5/16″ cable reduces stress on equalization system and increases cable life
- Padded overhead shut off system prevents vehicle damage
- Fully gusseted base plate design increases column rigidity
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Premium powder coat finish provides long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Product Specifications
| Model | CL10-XP9-QC |
|---|---|
| Lifting Capacity | 9,000 lbs. |
| Lift Configuration | Drive-on express pad |
| Arm Configuration | NA |
| Rise Height | 70” |
| Overall Height | 140” |
| Overall Height (Cylinder Extended) | 143” |
| 2’ Height Extension Available | Yes |
| 3’ Height Extension Available | Yes |
| Overall Width | 138.5” |
| Drive-Thru Clearance | 90” |
| Floor to Overhead Switch | 134.5” |
| Platform Height | 2.25” |
| Platform Width | 24” |
| Platform Length | 58” / 66.5” / 75” |
| Width Between Platforms | 31.5” |
| Inside Columns | 110” |
| Motor / Voltage | 3HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 27s |
| Ceiling Height Required | 12' |
| ALI/ETL Certified | Yes |
| Featuring Quick Cycle | Yes |
| Featuring Dual Pendant Controls | - |

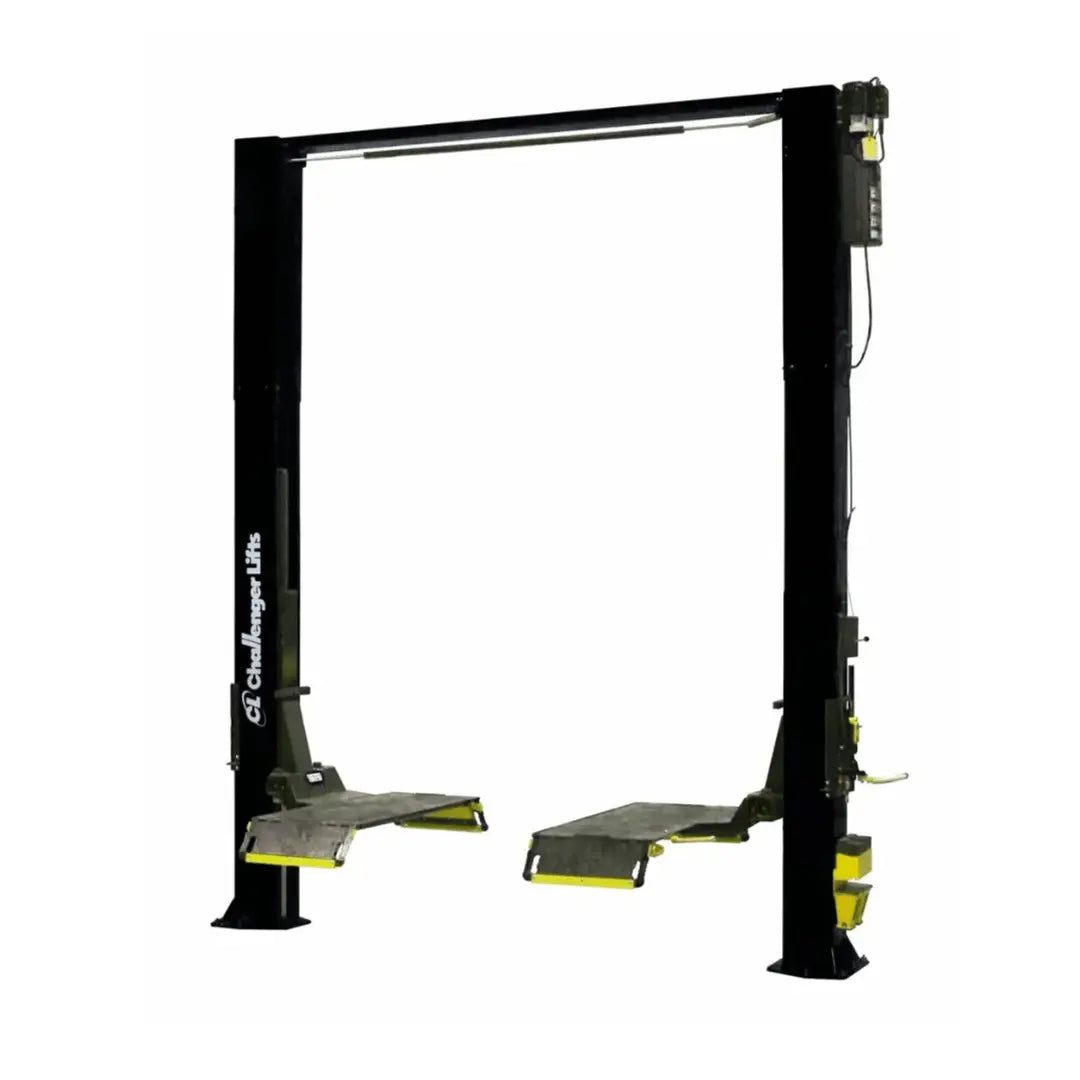

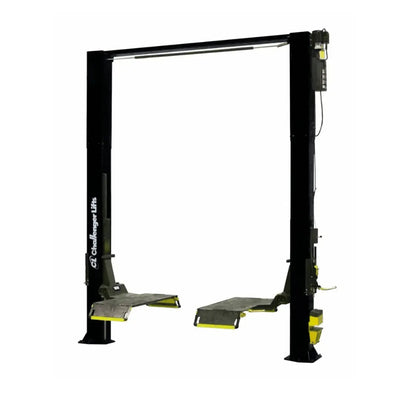

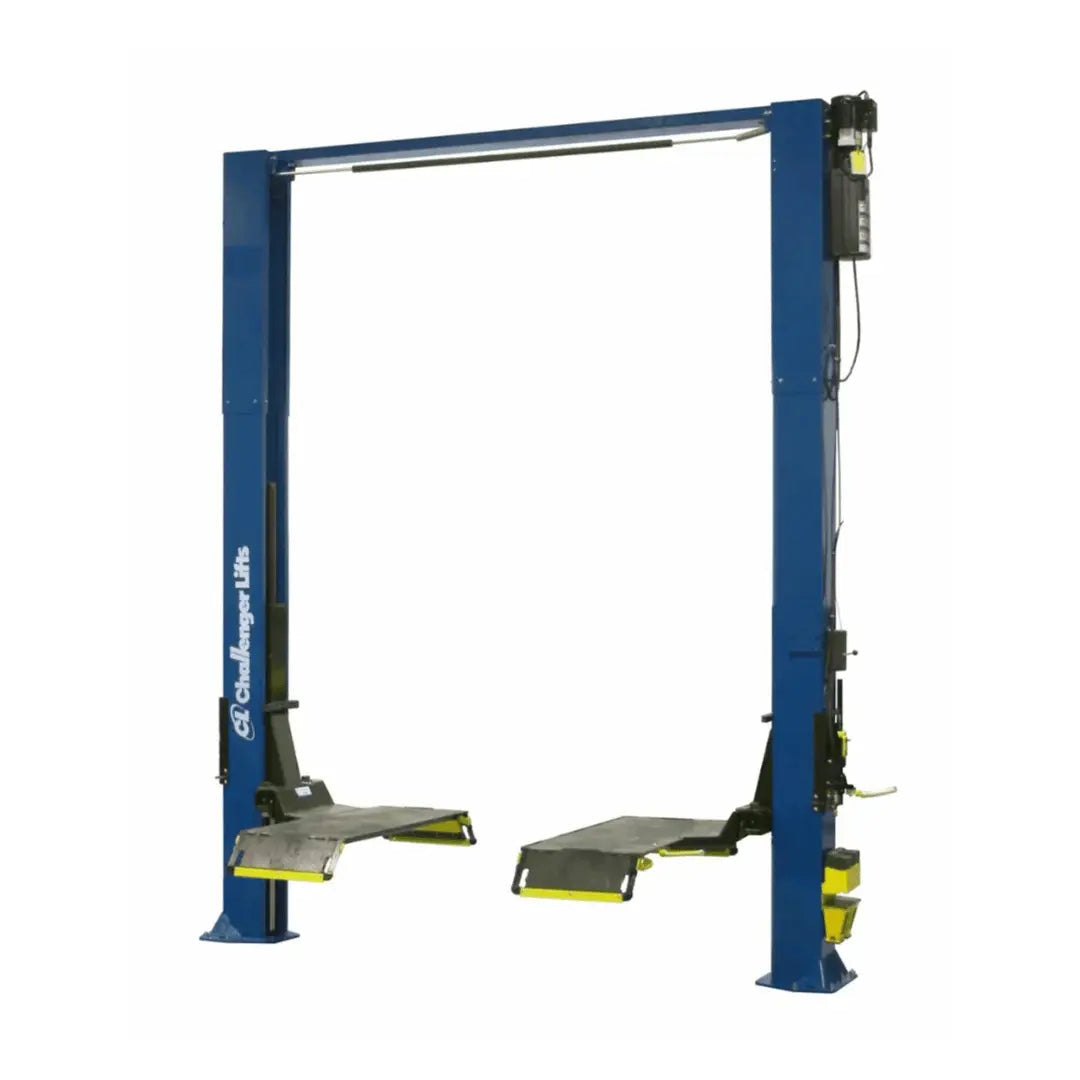

| Colors Available | Red, Blue, Black |
